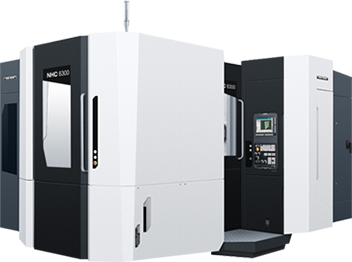

DMG Horiz. machining center & 6-pallet auto. production line

NHC5500 CPP6

Travel X/Y/Z：800/800/880mm

Pallet size：500×500mm

Maximum workpiece swing diameter：Ф800mm

Maximum workpice height：1100mm

Pallet maximum load capacity：700kg

Control：Mitsubishi_M730BM

DMG MORI 5-axis turn-milling complex machining center

NTX 3000

Excellent performance and quality

Maximum turning diameter: 670 mm

Maximum turning length: 1538 mm

Built-in motorized spindle with C-axis (0.0001 °): 5000 rpm

Main shaft through-hole diameter: 102 mm

Maximum rotation speed of turning/milling spindle: 12000 rpm

Number of cutter positions: 76

CNC system and software: FANUC

QUICK TURN 450ML

PRODUCT: TURNING

Maximum rotation diameter: 845 mm

Maximum machining diameter: 580 mm

Main shaft through-hole diameter: 166 mm

Number of tools: 12

QT-COMPACT 300MY

QT-COMPACT 300MY

PRODUCT: TURNING

Maximum rotation diameter: 695 mm

Maximum machining diameter: 340 mm

Main shaft through-hole diameter: 77 mm

Maximum machining length: 504 mm

Number of tools: 12

Precision carving 5-axis high-speed machining center

Precision precision carving 5-axis high-speed machining center

X/Y/Z stroke: 390/510/300 mm

Rotation angle of A/C axis: - 110 °~90 °/360 °

Workbench size: Ф 300mm

Maximum working load: 100kg

STUDER CNC Universal Cylindrical Grinder

S41-1600

A fully functional grinding center for complex tasks

Maximum travel of X-axis: 350 mm -- Maximum travel speed of X-axis: 20'000 mm/min

Maximum travel of Y-axis: 100 mm

Maximum travel of Z-axis: 1'150 mm -- Maximum travel speed of Z-axis: 20'000 mm/min

A-axis rotation range: 30 ° -- B-axis rotation range: 270 ° -- C-axis rotation range: ∞ °

Workpiece length: 0 - 1'000 mm --- Workpiece diameter: 0 - 549 mm

Maximum workpiece weight: 250 kg

Center distance: 1'000 mm --- Center height: 275 mm

DMG MORI CNC multi-function vertical grinding machine

CVG-13

CNC vertical composite grinding machine

Rotary diameter: 1350 mm

Maximum grinding diameter: 1300 mm

Maximum workpiece height: 700 mm

Maximum grinding length: 600 mm

Maximum rotation speed of workbench spindle: 100 rpm

Maximum rotation speed of internal grinding spindle: 9000 rpm

Maximum rotation speed of external grinding spindle: 3000 rpm
